3D FRONTLIT CHANNEL LETTER QUALITY GUIDE — WHAT SETS EACH TIER APART

Not all vinyl signs are the same. The film grade, ink system, and laminate you choose determines whether your sign looks sharp for 3 years or 10 — and whether it peels, fades, or stays perfect through Australian sun and rain.

Premium vinyl shopfront sign installed on glass vibrant clean edges Perth - Neon Brothers
ESSENTIAL
ESSENTIAL

ESSENTIAL — BUDGET 3D CHANNEL LETTERS

Who it is for:

Entry-level businesses, pop-up retail, temporary promotions, short-term campaigns.

The sign uses standard cast vinyl with solvent ink and no laminate. It goes on clean, looks great on day one, and does its job. Colours are CMYK matched. The outdoor lifespan is typically 3 to 4 years before fade starts, depending on sun, heat, and coastal humidity.

Spec at a glance
25mm · 1.0mm galv. steel · 3mm extruded acrylic · Generic SMD · IP54

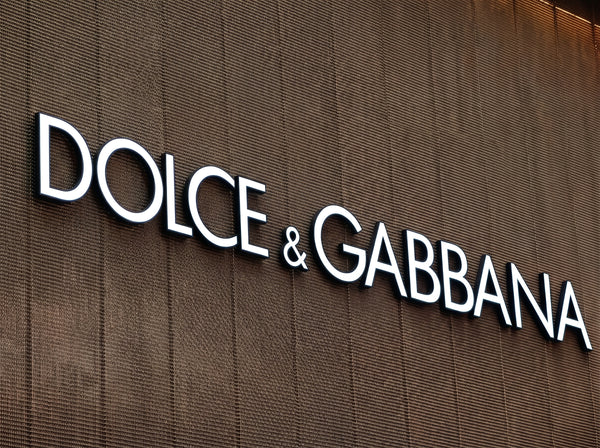

Essential tier vinyl sign example - Neon Brothers
PREMIUM
PREMIUM

PREMIUM — COMMERCIAL-GRADE CHANNEL LETTERS

Who it is for:

Established cafes, retail stores, offices, and businesses that repaint or refit every 5-7 years.

Premium uses long-term cast vinyl with eco-solvent ink and a gloss over-laminate. The laminate adds UV protection and keeps the surface wipe-clean. Colours are Pantone-referenced so they match your brand guidelines. Wet application means cleaner install with no bubbles.

Spec at a glance
30mm · 1.2mm aluminium · 5mm cast acrylic · Tier-1 LED 120/m · IP65 cert

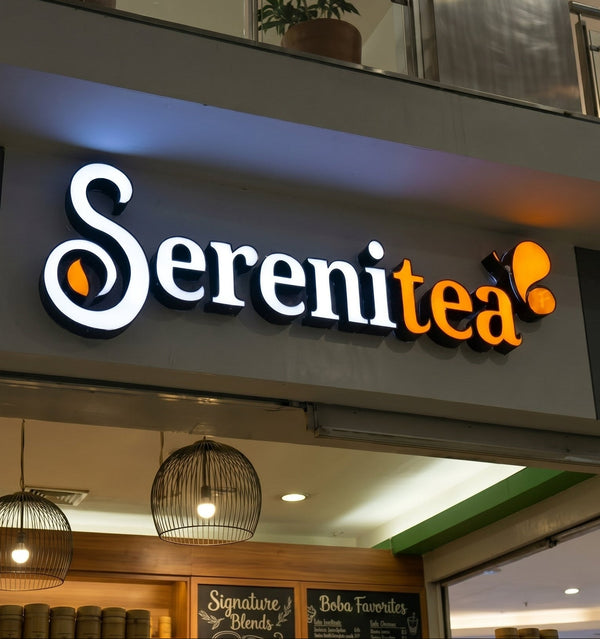

Premium tier vinyl sign example - Neon Brothers
ELITE
ELITE

ELITE — ARCHITECTURAL-GRADE CHANNEL LETTERS

Who it is for:

Flagship stores, franchise rollouts, high-end retail, anywhere brand consistency is non-negotiable.

Elite uses premium cast vinyl with UV-cured ink, the same technology used in automotive and architectural graphics. A UV-blocking matte laminate sits on top, cutting UV degradation dramatically. Colours are spectrophotometer-verified to exact Pantone values.

Spec at a glance
40mm · 1.5mm brushed alu/SS304 · 8mm cast · Samsung 5-step · IP67 IEC · Meanwell

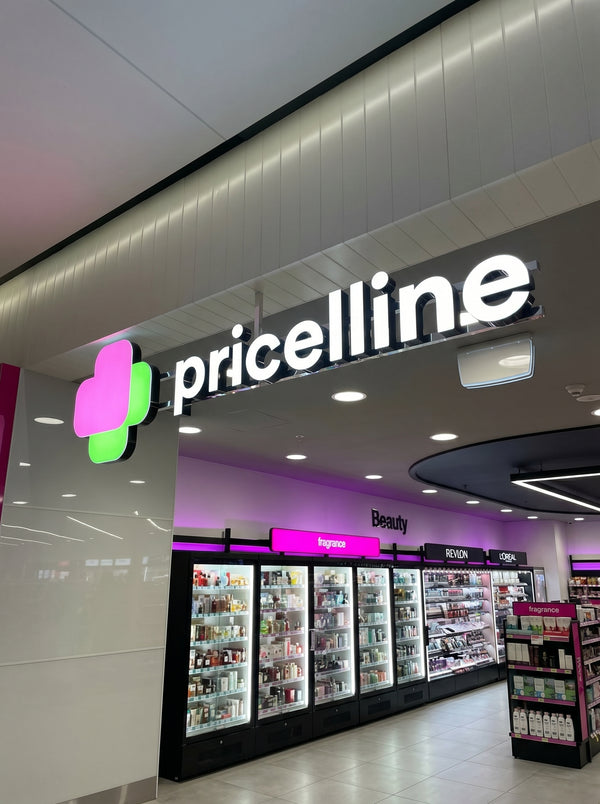

Elite tier vinyl sign example - Neon Brothers
Side by Side
Side by Side

25MM VS 30MM VS 40MM CHANNEL LETTERS

Spec Essential Premium ★ Elite
Return Depth 25mm 30mm 40mm
Return Material 1.0mm galvanised steel 1.2mm aluminium powder coat 1.5mm brushed aluminium / SS304
Acrylic Face 3mm extruded 5mm cast (Plexiglas/equiv) 8mm cast — zero hotspot
LED Generic SMD modules Tier-1 120 LED/m (Epistar) Samsung equiv — 5-step MacAdam
IP Rating IP54 IP65 CE certified IP67 IEC 60529 cert
Warranty 1 year 2-year NBCare™ 2-year NBCare™

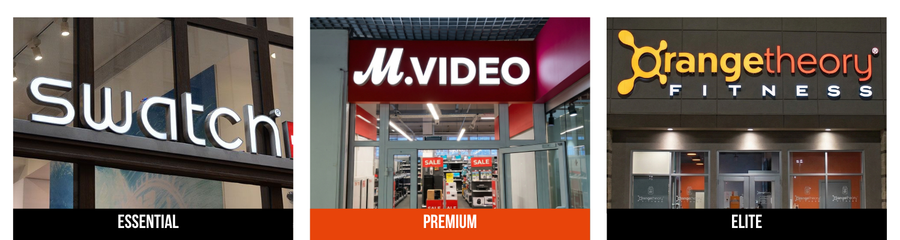

Three vinyl signs comparison showing quality differences over time - Neon Brothers
FAQ

SIGN QUALITY — FREQUENTLY ASKED QUESTIONS

What is a frontlit channel letter?+

Fabricated metal letter with translucent acrylic face + internal LED. Light shines through the front. Most common commercial sign in Australia.

What does return depth mean?+

Side depth of the letter from wall. 25mm: flat. 30mm: visible shadow line. 40mm: dramatic 3D shadow effect.

Why does face thickness matter?+

3mm extruded: flexes on wide letters, shows hotspots. 5mm cast: stiffer, even diffusion. 8mm cast: zero hotspot from any range.

What causes hotspots?+

Generic LED modules with wide spacing + thin acrylic. Solved with 120+ LED/m and 5–8mm cast acrylic.

Steel vs aluminium returns?+

Steel: heavier, painted. Aluminium: lighter, powder coat, more precise. SS304/316 available for Elite coastal.

What IP rating for outdoor?+

IP54: sheltered. IP65: standard outdoor rain. IP67: heavy rain, coastal spray, high humidity.

Do you ship signs Australia-wide?+

Yes. All signs are custom made and shipped tracked to any address in Australia — Perth, Sydney, Melbourne, Brisbane, Adelaide, and regional areas. Signs are packed flat with protective backing to prevent damage during transit.

Franchise rollouts?+

Premium: Pantone to RAL matching. Elite: spectrophotometer-verified Pantone — every location identical.
